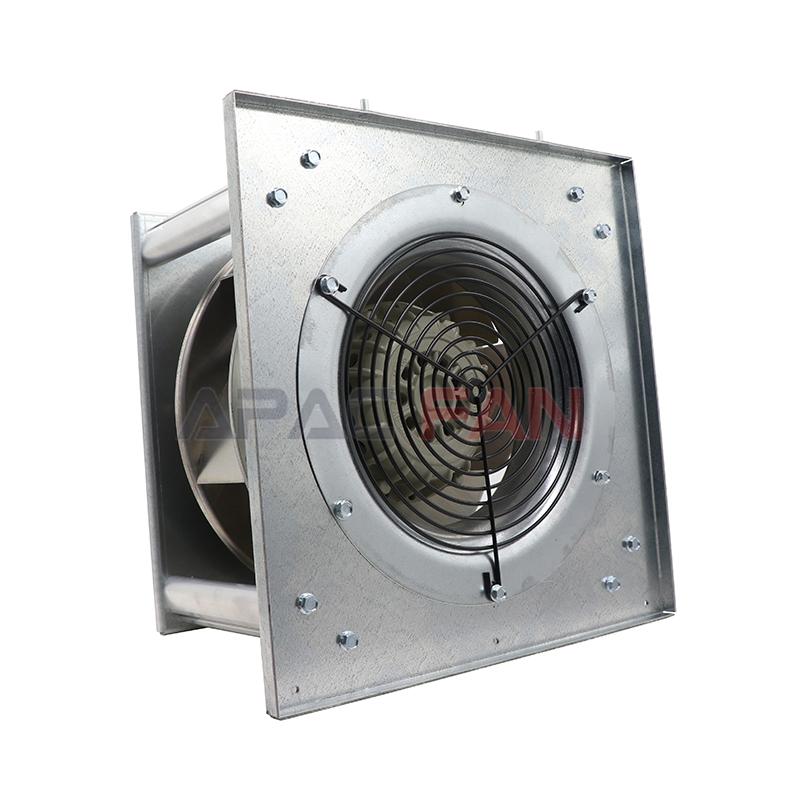

GR25I-6ID.BD.CR 116882/A01 ZIEHL-ABEGG Centrifugal Fan

Brand：

ZIEHL-ABEGG

Category：

Centrifugal Fan

Description：

Brand：ZIEHL-ABEGG
Part No：GR25I-6ID.BD.CR 116882/A01
Fan Type：Centrifugal Fan
Rated Voltage(V)：1~200-277
Size(mm)：250
Max.Air Flow(m³/h)：2900
Max.Pressure(Pa)：850
Input Power(W)：500
Speed(rpm)：3170

00852-56261528 info@apacfan.com

Nominal data

Brand：

ZIEHL-ABEGG

Part No.：

GR25I-6ID.BD.CR 116882/A01

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

1~200-277

Size(mm)：

250

Max.Air Flow(m³/h)：

2900

Max.Pressure(Pa)：

850

Input Power(W)：

500

Speed(rpm)：

3170

Noise(db)：

Description

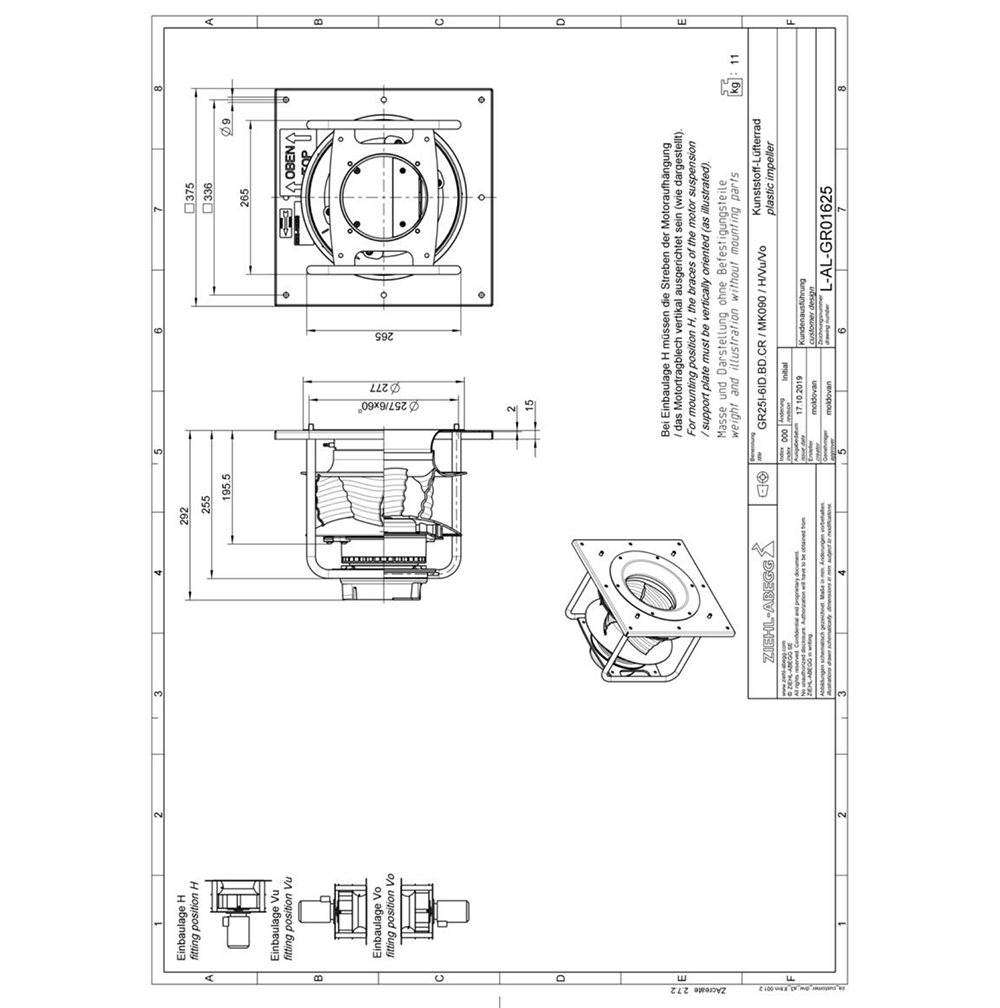

GR25I-6ID.BD.CR 116882/A01 Ziehl-abegg Specification drawing：
